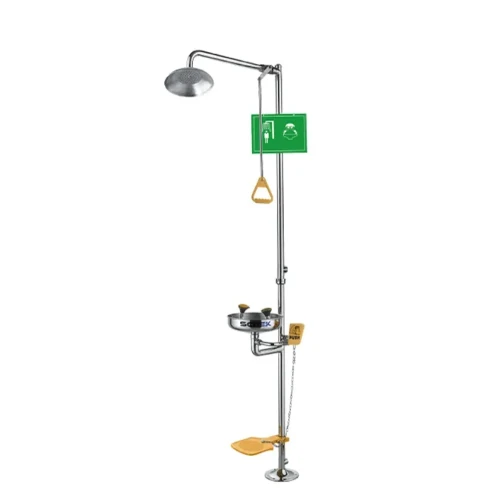

Combined Emergency Shower & Eye Wash, SS304 Ball Valve EW-CS4 Scitek Global
Product Description
Combined Emergency Shower & Eye Wash Specifications:
|
Model
|
EW-CS4
|
|
Material
|
Stainless Steel 304
|
|
Shower & Eye Wash Switch
|
Two-piece ball valve
|
|
Shower Head
|
Spinning-formed with curled rim, diameter 250 mm
|
|
Pipe Diameter
|
38mm
|
|
Nominal Pressure
|
1.0 Mpa
|
|
Working Pressure
|
0.2~0.4 Mpa
|
|
Testing Pressure
|
1.5 Mpa
|
|
Temperature Requirement on Working Environment
|
0°C~40°C
|
|
Flow Rate of Body Shower
|
≥76 L/min
|
|
Flow Rate of Eye/Face Wash
|
≥11.4 L/min
|
|
Flow Rate of Eye Wash
|
≥1.5 L/min
|
|
Inlet Thread
|
Rp 1", female
|
|
Outlet Thread
|
Rp 1", female
|
|
Inlet Height (From above the Floor)
|
1201 mm
|
|
Outlet Height (From above the Floor)
|
86 mm
|
|
Distance Between Spray Heads
|
170 mm
|
|
Package Size(W×D×H)(mm)
|
1250x330x250
|
|
Gross Weight
|
16.2kg
|
Notes : The inlet
parts and outlet parts are customizable; shutoff valve and filter are
proposed to be equipped on the water-supply end; stainless steel – made
foot treadle is optional as eye wash switch.
Combined Emergency Shower & Eye Wash Feature:
1.
Surface finishing: fine-polished, which makes the pipe surface
performs better on corrosion resistance
2.
Assembling feature: pipes connected by innovative inserting
& turning
3.
Usage: drenching body and rinsing faces / eyes can be operated
separately or simultaneously
4.
Eyewash bowl features: 300 mm in diameter, vertical bowl-wall
design, allows better water collecting and anti-splashing
5.
Dust cover: integrated with the spray head (not connected by
chain), and easily removed by water flow.
6.
Spray head feature: patented design, each spray head equips with
one water-flow control valve
7.
Water pattern coverage: at the height of 1520 mm above floor,
the water pattern covers a circular area of at least 510 mm in diameter

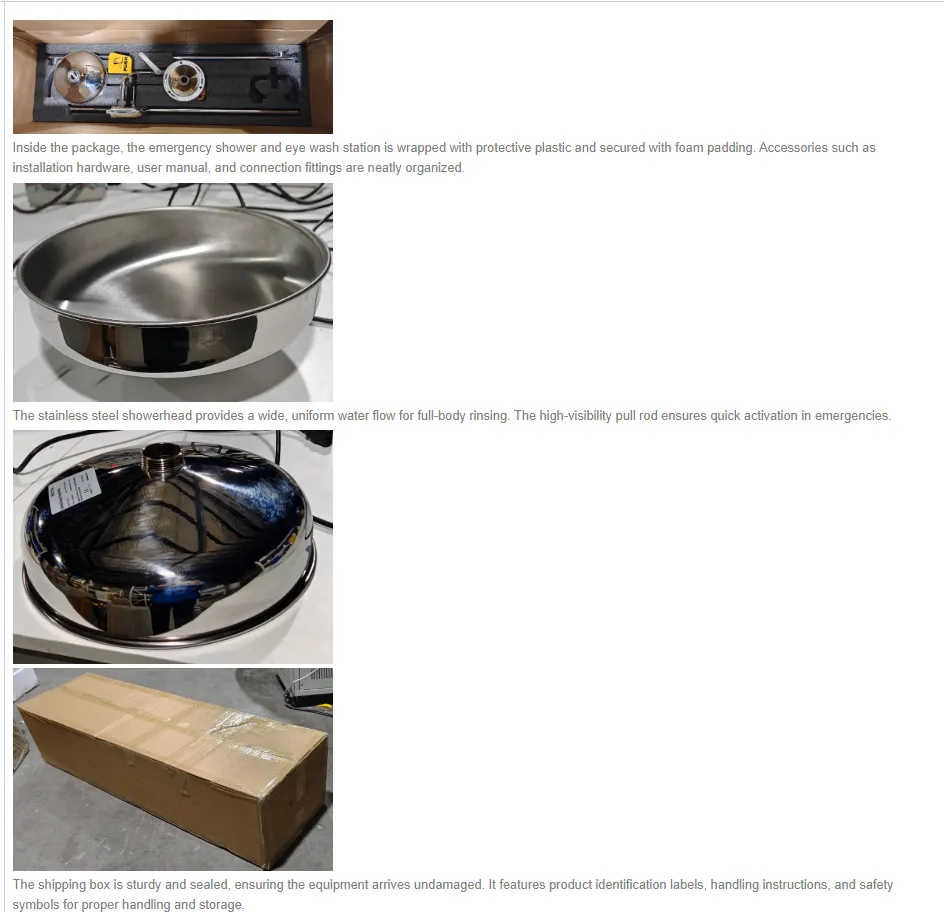

Details of Eye Washer:
