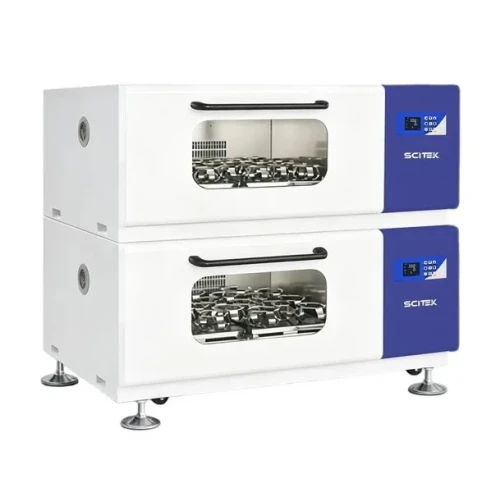

Stackable Thermostatic Shaking Incubator
Features
1. Three stackable layers structure
2. Pull out rail platform
3. LCD display with bright illumination
4. Automatic defrost function
5. High precision speed and temperature control
6. Memorized and protected operating parameters
7. Function of encrypted and locked operating parameters
8. Continuously running or timing
9. Multi-steps rotate speed, temperature and time control systems
10. Unique slow-start design, unique drive system and advantaged air
duct design
11. High quality servo motor
12. Slow accelerate and decelerate design
Specification
| Model | ICB-180S | ICB-180SI |
|---|
| Display | LCD display |
| Controller | PID |
| Circulation Mode | Forced convection |
| Shaking Mode | Convolution |
| Drive Mode | Multidimensional drive |
| Capacity (L) | 180L |
| Temperature Range (℃) | RT+5~65 | 4~65 |
| Temperature Accuracy | ±0.1 ℃ |
| Temperature Uniformity | ±0.6 ℃ (at 37 ℃) |
| Cyclotron Frequency Range (rpm/min) | 20-350 (top floor 20-300) (To do static culture) |
| Cyclotron Frequency Sensitivity (rpm) | ±1 |
| Orbit Range (mm) | Φ26 |
| Timing Range (h/min) | 0-9999h/min(Any time,continuous duty) |
| Standard Capacity | Flask clamp: 500 mL×20 |
| Max. Capacity | Flask clamp: 250 mL×32 or 500 mL×21 or 1 L×13 or 2 L×7(per unit) |
| External and Internal Material | Stainless steel |
| Number of Platform | One(per unit) |
| Power Supply | AC 220±10%V, 50/60 Hz; 110 V, 60 Hz |
| Consumption (W) | 1000 | 1200 |
| Shaking Plate Size (mm) | 610×460 |
| Size (W×D×H)(mm) | 1120×790×620 (per unit) |
| Shipping Size (W×D×H)(mm) | 1275x950x810 (per unit) |
| G.W. /N. W.(kg) | 250/220 (per unit) |
