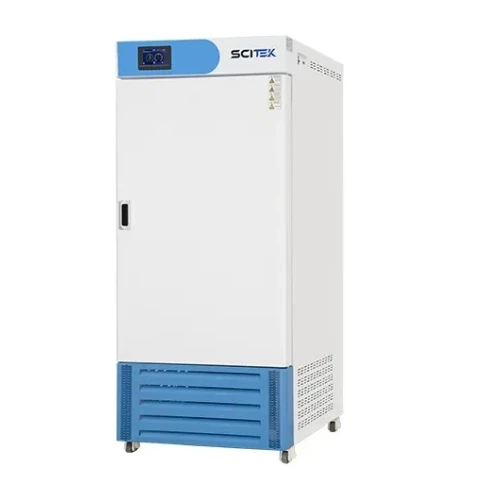

Cooling Biochemical Incubator Scitek Global
Features
1. 304 Stainless steel chamber, semi-circular inner corner,
shelves can be freely loaded and unloaded, easy to clean.
2. The shell is treated with electrostatic spraying
technology, which is corrosion-resistant and durable.
3. Large touch screen, 99×5-segment program control, with
temperature curve, data storage function.
4. High-efficiency compressor and circulating fan are used,
which are energy-saving and low-consumption.
5. Equipped with a temperature limit alarm system, which will
automatically limit over-temperature to ensure experimental safety.
6. Double-layer door structure, the inner door uses tempered
glass for easy observation of samples, and the outer door uses magnetic strips
for good sealing and heat preservation performance.
Specification
| Model | ICB-80BP | ICB-150BP | ICB-250BP | ICB-350BP | ICB-460BP |
|---|
| Capacity(L) | 80 | 150 | 250 | 350 | 460 |
| Circulation Mode | Forced convection |
| Size(WxDxH)(mm) | Internal | 400x400x500 | 400x500x750 | 500x550x910 | 600x600x1000 | 650x650x1100 |
| External | 625x550x1065 | 600x660x1360 | 720x710x157 | 800x760x1610 | 850x810x1715 |
| Temperature | Range (℃) | 0 ~ 65 |
| Fluctuation (℃) | High Temp.: ±0.5°C; Low Temp.:±1°C |
| Resolution (℃) | 0.1 |
| Uniformity (℃) | ±1 |
| Sensor | PT100 |
| Controller | PID Controller |
| Display | Large high definition LCD |
| Timer | 0-99h59min/99*5Segments (with timing waiting function) |
| Material | Internal | 304 stainless steel |
| External | Cold rolled steel electrostaticspraying exterior |
| Lighting System | LED light; |
| Test Hole | Standard Φ43mm test hole on the left side |
| Refrigerant | R134a (CFC free) |
| Defrosting Mode | Automatic |
| Safety Device | Over temperature |
Power Supply | AC 220/110V, 50/60Hz |
Consumption (W) | 600 | 800 | 1000 | 1200 | 1400 |
| G.W. (kg) | 61 | 88 | 112 | 139 | 168 |
| Shipping Size (WxDxH)(mm) | 690x620x1150 | 770x735x1520 | 820x800x1660 | 870x860x1800 | 990x1040x1970 |
| Standard | USB port for storing and exporting data |
| Optional | RS485 interface, printer and spare shelf |
