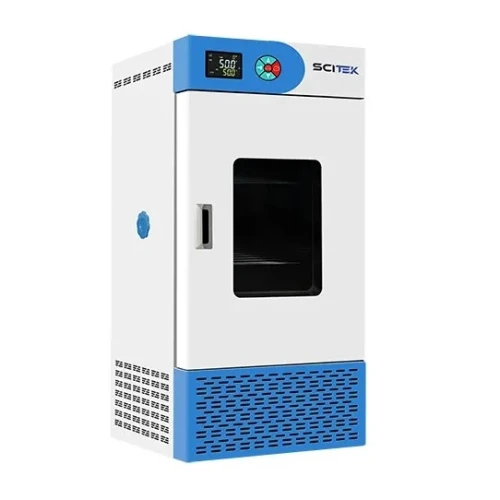

Cooling Biochemical Incubator, BI Series Scitek Global
Features
1. Stainless steel chamber, semi-circular inner corner, shelves can
be freely loaded and unloaded, easy to clean.
2. The shell is treated with electrostatic spraying technology,
which is corrosion-resistant and durable.
3. Microcomputer control system, accurate and reliable temperature
control.
4. High-efficiency compressor and circulating fan are used, which
are energy-saving and low-consumption.
5. Equipped with a temperature limit alarm system, which will
automatically limit over-temperature to ensure experimental safety.
6. Double-layer glass observation window. The outer door is sealed
with magnetic strips, which is easy to open and close, has good sealing and
thermal insulation performance.
Specification
| Model | ICB-50BI | ICB-80BI | ICB-150BI | ICB-250BI | ICB-350BI | ICB-460BI |
|---|
| Capacity (L) | 50 | 80 | 150 | 250 | 350 | 460 |
| Circulation Mode | Forced convection |
| Internal Size (WxDxH)(mm) | 350x350x400 | 400x400x500 | 400x500x750 | 500x550x910 | 600x600x1000 | 650x650x1100 |
| External Size (WxDxH)(mm) | 580x460x900 | 610x560x1070 | 600x660x1400 | 700x720x1590 | 790x760x1640 | 850x805x1730 |
| Temperature | Range | 0 to -65 °C |
| Fluctuation | High Temp.: ±0.5 °C; Low Temp.:±1 °C |
| Resolution | 0.1 °C |
| Uniformity | ±2 °C |
| Controller | PID controller |
| Display | Digital LCD dispaly |
| Timer(min) | 0-9999 |
| Material | Internal | Stainless steel |
| External | Cold rolled steel electrostatic spraying exterior |
| Test Hole | Standard Φ43mm test hole on the left side |
| Refrigerant | R134a (CFC free) |
| Defrost Mode | Automatic |
| Safety Device | Over temperature |
| Power Supply | AC 220/110V, 50/60Hz |
| Consumption(W) | 500 | 600 | 800 | 1000 | 1200 | 1400 |
| Shelf | 2
|
| Shipping Size (W×D×H)(mm) | 615x510x980 | 690x620x1150 | 770x735x1520 | 820x800x1660 | 870x860x1800 | 990x1040x1970 |
| G.W. (kg) | 51 | 61 | 87 | 112 | 139 | 168 |
| Optional | USB Port; RS485 interface; printer and spare shelf |
