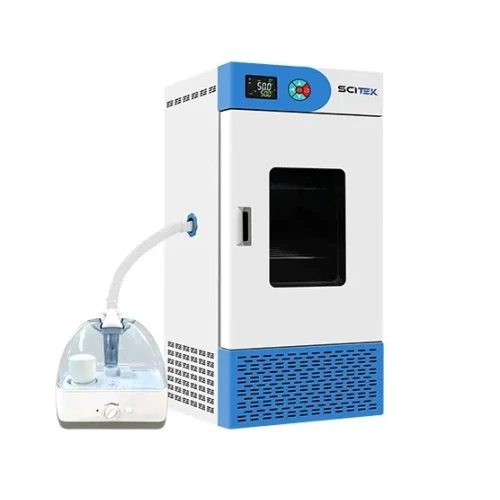

Constant Temperature & Humidity Incubator, THI Series Scitek Global
Features
1. Stainless steel chamber, semi-circular inner corner, shelves can
be freely loaded and unloaded, easy to clean.
2. The shell is treated with electrostatic spraying technology,
which is corrosion-resistant and durable.
3. Microcomputer control system, accurate and reliable temperature
control.
4. High-efficiency compressor, balanced control of cooling and
heating, small temperature fluctuation, precise temperature control.
5. Double-layer glass observation window. The outer door is sealed
with magnetic strips, has good sealing and thermal insulation performance.
6. Using ultrasonic humidification, the humidification and
temperature control are stable, and the humidity fluctuation range is: ±5%RH.
7. With the function of power off when there is no water.
Specification
| Model | ICB-80THP | ICB-150THP | ICB-250THP | ICB-350THP | ICB-460THP |
|---|
| Capacity(L) | 80 | 150 | 250 | 350 | 460 |
| Display | 5.6-inch touch screen |
| Circulation Mode | Forced convection |
| Size (W×D×H)(mm) | Internal | 400×400×500 | 400×500×750 | 500×550×910 | 600×600×1000 | 650×650×1100 |
| External | 625×550×1065 | 600×660×1360 | 720×710×1570 | 800×760×1610 | 850×810×1715 |
| Temperature | Range (℃) | 0–65 |
| Fluctuation (℃) | High Temp. : ±0.5°C, Low Temp. :±1°C |
| Resolution (℃) | 0.1 |
| Uniformity (℃) | ±1 |
| Sensor | PT100 |
| Humidity | Rang | 30%–95%RH |
| Stability | ±3%RH |
| Method | Built-in ultrasonic humidifier |
| Sensor | High precision anti-condensation |
| Controller | PID |
| Timer | 0-99h59min/99×5Segments (with timing waiting function) |
| Material | Internal | 304 stainless steel |
| External | Cold rolled steel electrostaticspraying exterior |
| Test Hole | Standard Φ43mm test hole on the left side |
| External Socket | Universal socket(one) |
| Compressor | Variable frequency compressor (energy-saving) |
| Refrigerant | R134a (CFC free) |
| Defrosting Mode | Automatic |
| Safety Device | Over temperature, over humidity, water shortage alarm |
Power Supply | AC 220/110V, 50/60Hz |
| Shelves | 2
|
Consumption(W) | 600 | 800 | 1000 | 1200 | 1400 |
| G.W. (kg) | 61 | 88 | 112 | 139 | 168 |
| Shipping Size (W×D×H)(mm) | 690×620×1150 | 770×735×1520 | 820×800×1660 | 870×860×1800 | 990×1040×1970 |
| Standard | USB port for storing and exporting data |
| Optional | RS485 interface, printer and spare shelf |
