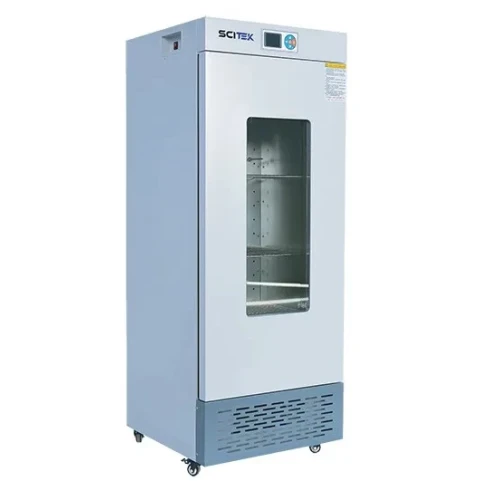

BOD Incubator Scitek Global
BOD incubators, also known as
low-temperature incubators, are commonly used for BOD determination,
cultivation of insects, plants, and microorganisms such as bacteria. This
biological oxygen demand incubator uses forced convection to ensure uniform
temperature inside the chamber.
The biological oxygen demand
incubator is commonly used in the environmental monitoring and beverage
industries for the determination of biochemical oxygen demand in water and for
assessing water quality.
Features
1. Observation window for easy viewing of chamber contents.
2. Adjustable shelf with minimum spacing of 30mm.
3. Corrosion-resistant brushed stainless steel inner chamber.
4. Efficient internal circulation system with high-quality fan.
Back suction and bottom vertical air supply for improved ventilation and
temperature uniformity.
5. Laser hollowed-out shelf for enhanced ventilation and
temperature uniformity.
6. Intelligent control with large-screen LCD display. User-friendly
menu-type operation interface. Running functions include fixed value and timing
modes.
7. Energy-saving features such as synthetic silicone sealing strip
to prevent heat loss.
8. Automatic adjustment of control parameters for optimal heating
and energy consumption.
9. High efficiency and energy-saving compressor for stable
temperature control and low power consumption.
Specification
| Model | ICB-70B | ICB-100B | ICB-150B | ICB-250B | ICB-350B | ICB-450B |
|---|
| Capacity(L) | 70 | 100 | 150 | 250 | 350 | 450 |
| Circulation Mode | Forced convection |
| Size (WxDxH) | Internal (mm) | 450×350×450 | 510×390×510 | 550×390×800 | 560×420×1050 | 560×530×1200 | 700×520×1210 |
| External (mm) | 550×550×890 | 620×590×990 | 600×630×1460 | 660×660×1700 | 670×730×1880 | 810×790×1890 |
| Temperature | Range (℃) | 0~60 |
| Fluctuation (℃) | ±0.5 |
| Resolution (℃) | 0.1 |
| Uniformity (℃) | ±1 |
| Sensor | PT100 |
| Controller | PID |
| Display | High efinition LCD |
| Timer | 1~9999min |
| Material | Internal | Mirror stainless steel |
| External | Cold rolled steel electrostatic spraying exterior |
| Shelves | 2 | 3 | 3 | 3 | 4 |
| Refrigerant | R134a (CFC free) |
| Safety Device | Leakage protector, over temperature visible & audible alarm |
| Electricity | Voltage
/Frequency | AC 220/110V, 50/60Hz |
Consumption
(W) | 660 | 680 | 690 | 730 | 780 | 1320 |
| N.W./G.W. (kg) | 55/60 | 80/100 | 100/120 | 120/140 | 140/160 | 158/200 |
| Shipping Size (WxDxH) (mm) | 680x680 x1050 | 740x710 x1140 | 760x710 x1610 | 800x760 x1930 | 810x900 x2020 | 900x1150 x2080 |
| Optional | Test hole(Φ25/50/80/100mm), spare shelf, internal socket, digital independent temp. limiter, intelligent LCD procedure temperature controller (Optional USB, RS485/232 port, and built-in printer) |
