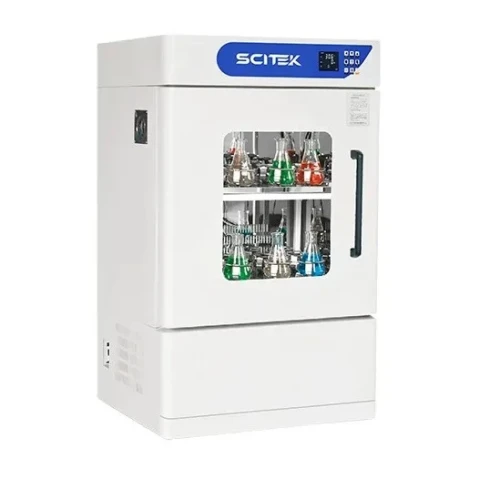

Vertical Single Door Shaking Incubator Scitek Global
Features
1. LCD display with bright illumination
2. Automatic defrost function
3. High precision speed and temperature control
4. Memorized and protected operating parameters
5. Function of encrypted and locked operating parameters
6. Continuously running or timing
7. Unique slow-start design, unique drive system and advantaged air
duct design
8. High quality servo motor
9. Multi-steps rotate speed, temperature and time control systems
10. Slow accelerate and decelerate design
Specification
| Model | ICB-160VS | ICB-160VSI |
|---|
| Display | LCD display |
| Controller | PID |
| Circulation Mode | Forced convection |
| Shaking Mode | Convolution |
| Drive Mode | Unidimensional drive |
| Capacity(L) | 160L |
| Temperature Range(℃) | RT+5~65℃ | 4~65℃ |
| Temperature Accuracy(℃) | ±0.1℃ |
| Temperature Uniformity(℃) | ±0.5℃(at 37℃) |
| Cyclotron Frequency Range (rpm/min) | 20-350(r/min)(To do static culture) |
| Cyclotron Frequency Sensitivity (rpm) | ±1 |
| Orbit Range(mm) | Φ26 |
| Refrigerant | / | Environmentally friendly refrigerant |
| Timing Range(h/min) | 0-9999h/min (Any time, continuous duty) |
| Standard Capacity | Flask clamp: 250ml×24 |
| Max. Capacity | Flask clamp: 100ml×60 or 250ml×38 or 500ml×22 or 1000ml×16 |
| Auxiliary Functions | Ultra-low speed start, Adjustable start speed, Overspeed auto-prtection, Watch dog timer, Parameters Storage, Encryption parameters, Electricity incoming recovery, Refrigeration unit overload protection, Sound and light alarm when upper and lower overtemperature, Function of lighting (Standard) and UV disinfection (Optional), Automatically stop when opening the door. |
| External and Internal Material | Stainless steel |
| Number of Platform | Two |
| Power Supply | AC220V±10%, 50/60Hz; 110V, 60Hz |
| Consumption | 600W | 850W |
| Size(W×D×H)(mm) | 700×580×1280 |
| Shipping Size(W×D×H)(mm) | 825x720x1490 |
| G.W. (kg) | 210 |
