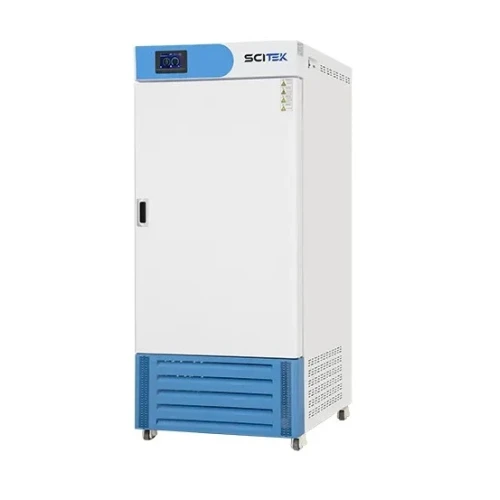

Constant Temperature & Humidity Incubator Scitek Global
Features
1.
Constant Temperature Incubator
Feature: 304 Stainless steel chamber,
semi-circular inner corner, shelves can be freely loaded and unloaded, easy to
clean.
2.
The shell is treated with
electrostatic spraying technology, which is corrosion-resistant and durable.
3.
Large touch screen, 99×5-segment
program control, with temperature curve, data storage function.
4.
Inverter compressor, balanced control
of cooling and heating, small temperature fluctuation, precise temperature
control.
5.
Double-layer door structure, the
inner door uses tempered glass for easy observation of samples, and the outer
door uses magnetic strips for good sealing and heat preservation performance.
6.
Intelligent defrosting, with
compressor overheat protection, instrument failure, automatic water inlet and
water shortage alarm protection, etc.
7.
Built-in humidification system,
imported humidity sensor components, automatic humidity control, good stability
and high precision.
Specification
| Model | ICB-80THP | ICB-150THP | ICB-250THP | ICB-350THP | ICB-460THP |
|---|
| Capacity(L) | 80 | 150 | 250 | 350 | 460 |
| Display | 5.6-inch touch screen |
| Circulation Mode | Forced convection |
| Size (W×D×H)(mm) | Internal | 400×400×500 | 400×500×750 | 500×550×910 | 600×600×1000 | 650×650×1100 |
| External | 625×550×1065 | 600×660×1360 | 720×710×1570 | 800×760×1610 | 850×810×1715 |
| Temperature | Range (℃) | 0–65 |
| Fluctuation (℃) | High Temp. : ±0.5°C, Low Temp. :±1°C |
| Resolution (℃) | 0.1 |
| Uniformity (℃) | ±1 |
| Sensor | PT100 |
| Humidity | Rang | 30%–95%RH |
| Stability | ±3%RH |
| Method | Built-in ultrasonic humidifier |
| Sensor | High precision anti-condensation |
| Controller | PID |
| Timer | 0-99h59min/99×5Segments (with timing waiting function) |
| Material | Internal | 304 stainless steel |
| External | Cold rolled steel electrostaticspraying exterior |
| Test Hole | Standard Φ43mm test hole on the left side |
| External Socket | Universal socket(one) |
| Compressor | Variable frequency compressor (energy-saving) |
| Refrigerant | R134a (CFC free) |
| Defrosting Mode | Automatic |
| Safety Device | Over temperature, over humidity, water shortage alarm |
Power Supply | AC 220/110V, 50/60Hz |
| Shelves | 2
|
Consumption(W) | 600 | 800 | 1000 | 1200 | 1400 |
| G.W. (kg) | 61 | 88 | 112 | 139 | 168 |
| Shipping Size (W×D×H)(mm) | 690×620×1150 | 770×735×1520 | 820×800×1660 | 870×860×1800 | 990×1040×1970 |
| Standard | USB port for storing and exporting data |
| Optional | RS485 interface, printer and spare shelf |
