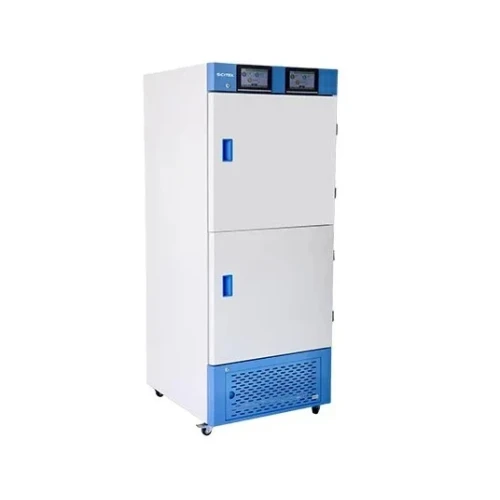

Multi-Chamber Constant Temperature and Humidity Incubator
Integrated multi-chamber design with independent temperature and
humidity control, the system enables the independent setting and precise
operation of multiple temperature zones within a single unit. Supporting users
in conducting comparative experiments with multiple sets of different
temperature gradients in parallel. It is widely used for environmental
simulation testing in fields such as bio-pharmaceuticals, materials chemistry, agricultural
research, electronics and electrical appliances, and food packaging.
Features
1.
Exterior is constructed from welded cold-rolled steel with an
electrostatic powder-coated finish for rust resistance, while the interior is
made of 304 stainless steel, ensuring easy cleaning and corrosion resistance.
2.
High-density polyurethane foam insulation provides excellent
thermal performance and an aesthetically pleasing appearance.
3.
Stainless steel shelves are included; they are height-adjustable
and removable.
4.
7-inch color LCD touchscreen with password-protected screen
locking and three-level access control; displays parameters such as multi-stage
temperature and humidity control values.
5.
Programmable control and fixed-value control modes, as well as a
delayed start function; program names can be customized in programming mode.
6.
Touchscreen interface automatically generates historical curves
and data logs; data is traceable and can be exported via a USB port.
7.
Controller includes a fault alarm function, allowing users to
view specific error details.
8.
Refrigeration system utilizes an imported compressor unit and
eco-friendly refrigerant, with all-copper heat exchangers.
9.
Humidification is achieved via a built-in module with an automatic
water supply.
10. Heating
system employs high-temperature PID control and finned stainless steel heaters.
11. Air
circulation system combines low-noise axial fans with a specially designed
airflow duct to ensure gentle airflow and uniform internal temperature.
12. Temperature
and humidity can be controlled independently across multiple zones.
13. Mechanical
door lock to ensure sample security.
Specification
Model | ICB-2S200TH | ICB-3S200TH | ICB-4S186TH |
Capacity (L) | 200×2 | 200×3 | 186×4 |
Circulation Mode | Forced air circulation |
Internal Size (W×D×H)(mm) | (660×660×460)×2 | (660×550×550)×3 | (612×660×462)×4 |
Shelves (pcs) | 2 | 3 | 4 |
Display | 7-inch LCD touch screen |
Temperature Range | 0–50 °C |
Temperature Resolution | 0.1 °C |
Temperature Fluctuation | ±1 ℃ (Tested at no load, ambient temperature 20°C, 50% RH humidity) |
Temperature Uniformity | ±1 ℃ (Tested at no load, ambient temperature 20°C, 50% RH humidity) |
Humidity Range | 40%RH to 95%RH |
Humidity Fluctuation | ±3%RH to ±7%RH |
Humidity Resolution | 1%RH |
Timer | 5 programs×100 segments, 0–9999 min per segment |
Refrigerant | R134a |
Power Supply | AC 220/110V, 50/60Hz |
Consumption (W) | 1100×2 | 860×3 | 860×4 |
External Size (W×D×H)(mm) | 760×800×1880 | 1160×790×2000 | 1420×800×1880 |
Shipping Size (W×D×H)(mm) | 870×880×1930 | 1270×880×2150 | 1460×890×2010 |
G.W (kg) | 215 | 310 | 428 |
Optional Accessory | Internal power socket, built-in micro printer, 50 mm test hole |
Ambient Temperature | 5–35 ℃ |
