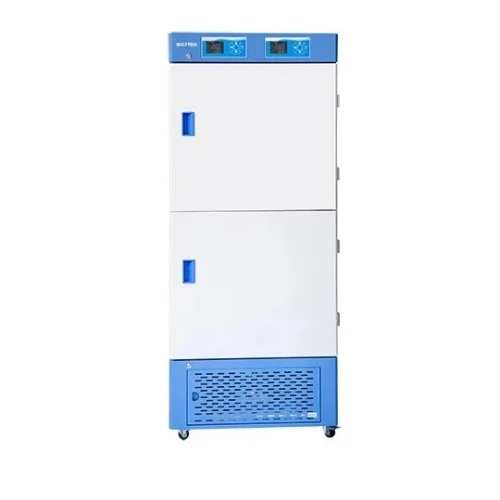

Multi-Chamber Biochemical Incubator Scitek Global
Multi-chamber
biochemical incubator features a multi-chamber design with independent
temperature control, enabling the independent setup and precise operation of
multiple temperature zones within a single unit. Supporting users in conducting
comparative experiments with multiple sets of different temperature gradients
in parallel. Widely used for routine experiments and batch screening in fields
such as bio-pharmaceuticals, environmental protection, agricultural research,
and food testing.
Features
1.
Exterior is
constructed from welded cold-rolled steel with an electrostatic powder-coated
finish for rust resistance, while the interior is made of 304 stainless steel,
ensuring easy cleaning and corrosion resistance.
2.
High-density
polyurethane foam insulation provides excellent thermal performance and an
attractive appearance.
3.
Stainless steel
shelves are adjustable in height and removable.
4.
Intelligent
controller with an LCD screen ensures stable performance, utilizing dynamic
control technology to maintain optimal temperature conditions.
5.
Refrigeration system
employs an imported compressor unit and eco-friendly refrigerant, with heat
exchangers made entirely of copper.
6.
Heating system
utilizes high-temperature PID control and a finned stainless steel heater.
7.
Air circulation
system combines low-noise axial fans with a specially designed airflow duct to
ensure gentle airflow and uniform internal temperature.
8.
Temperatures in
multiple zones can be controlled independently.
9.
Internal lighting
system features an automatic shut-off function.
10.
Mechanical door lock
to ensure sample security.
Specification
Model | ICB-2S200B | ICB-3S200B | ICB-4S186B |
Capacity (L) | 200×2 | 200×3 | 186×4 |
Circulation Mode | Forced air circulation |
Internal Size (W×D×H)(mm) | (660×660×460)×2 | (660×550×550)×3 | (612×660×462)×4 |
Shelves (pcs) | 2 | 3 | 4 |
Display | LCD screen |
Temperature Range | 0–50 °C |
Temperature Resolution | 0.1 °C |
Temperature Fluctuation | ±1 ℃ (Tested at no load, ambient temperature 20°C, 50% RH humidity) |
Temperature Uniformity | ±1 ℃ (Tested at no load, ambient temperature 20°C, 50% RH humidity) |
Timer | 0–9999 min |
Refrigerant | R134a |
Power Supply | AC 220/110V, 50/60Hz |
Consumption (W) | 1060×2 | 800×3 | 800×4 |
External Size (W×D×H)(mm) | 760×800×1880 | 1160×790×2000 | 1420×800×1880 |
Shipping Size (W×D×H)(mm) | 870×880×1930 | 1270×880×2150 | 1460×890×2010 |
G.W (kg) | 205 | 300 | 420 |
Optional Accessory | Touch screen, internal power socket, UV lamp, built-in micro printer, 50 mm test hole |
Ambient Temperature | 5–35 ℃ |
