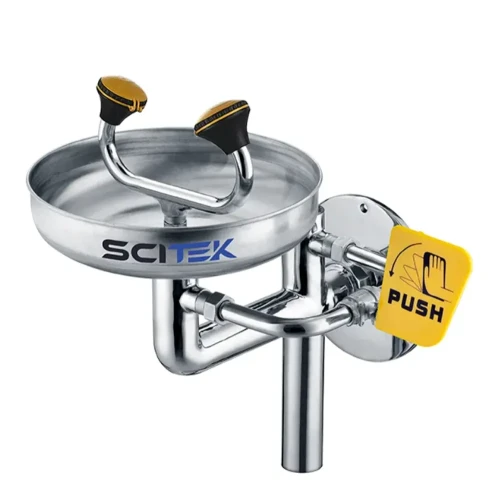

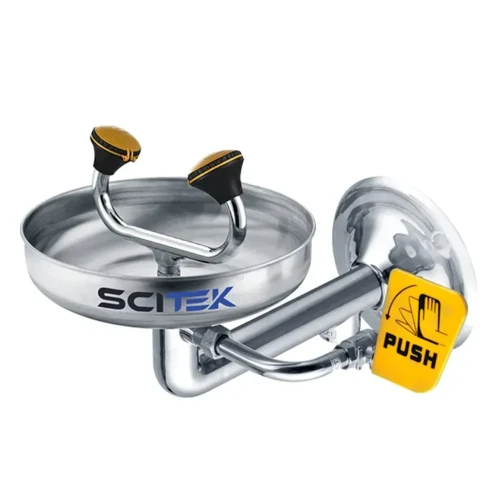

Wall-mounted Emergency Eye Wash EW-W1, W2 Scitek Global

Product Description



Wall-mounted Emergency Eye Wash Specifications:

Model	EW-W1	EW-W2
Material of Eye Wash	Stainless steel 304
Surface Finishing	Fine-polished
Function	Wash eyes and face
Eye Wash Switch	Two-piece ball valve
Nominal Pressure	1.0 Mpa
Working Pressure	0.2~0.4 Mpa
Testing Pressure	1.5 Mpa
Temperature Requirement on Working Environment	0°C~40°C
Flow Rate of Eye/Face Wash	≥ 11.4 L/min
Inlet Thread	Rp 1-1/4", female	RP 1/2", female
Outlet Thread	p 1-1/4", female	RP 1", female
Package Size (W×D×H)(mm)	470x320x230	350x320x250
Gross Weight	8kg	5.5kg



Notes: The inlet part and outlet part are customizable; shutoff valve and filter are proposed to be equipped on the water-supply end.
